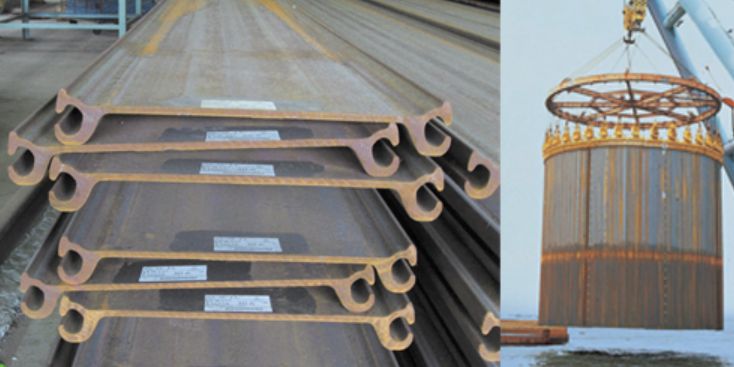

Straight Web Steel Sheet Piles
Straight web sheet piles for various civil engineering applications, including port structures, river revetments,
and temporary cofferdams. These hot-rolled steel piles offer high structural stability, good sealing, and efficient
construction due to their ability to interlock and form stable circular cells for retaining soil. Nippon Steel’s
commitment to technical expertise and innovative product development has established their sheet piles as a widely
accepted solution known for quality and construction efficiency.
Applications:
- Port and Harbor Structures: Common for building durable quay walls and breakwaters.
- River Structures: Utilized for river bank revetments and flood defense systems.
- Temporary and Permanent Retaining Walls: Can be used as temporary cofferdams for excavation or as permanent structures to retain soil backfill.
- Foundation Structures: Employed in various foundation projects for their deep penetration capabilities.
Straight Web Steel Sheet Piles
Durable steel piles for stable walls, ports, and effective soil containment.
Straight Web Steel Sheet Piling Dimensions and Properties
| Section | Effective Width (mm) | Effective Height (mm) | Wall Depth (mm) | Thickness of Pile (mm) | Mass (kg/m) | Mass (kg/m²) | Moment of Inertia (cm⁴/m) | Section Modulus (cm³/m) |
|---|---|---|---|---|---|---|---|---|
| NS – SP – FL | 500 | 44.5 | – | 9.5 | 61.7 | 123.0 | 396 | 89 |
| NS – SP – FXL | 500 | 47.0 | – | 12.7 | 77.2 | 154.0 | 570 | 121 |
